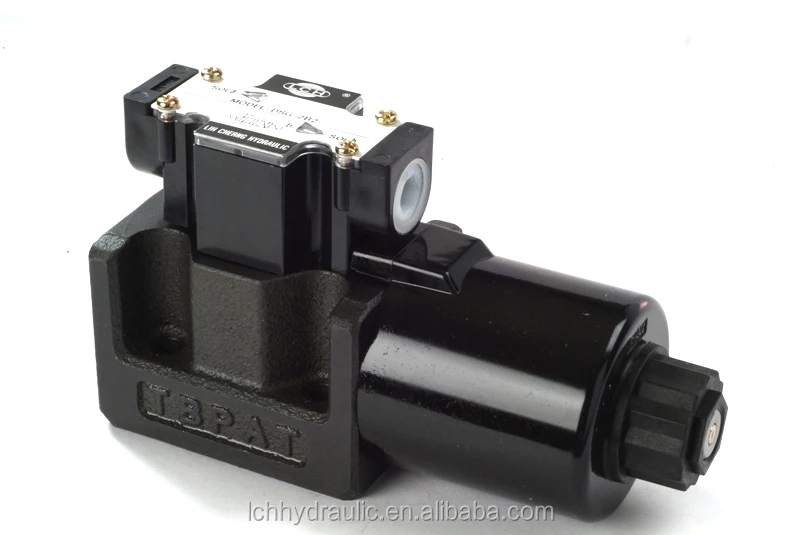

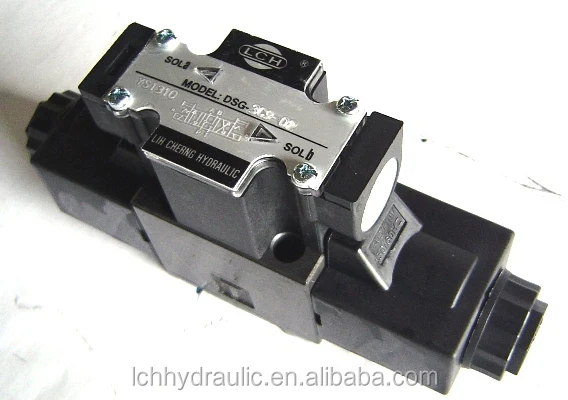

reducing solenoid valve taiwanese solenoid valve cetop

FOB Reference Price:Get Latest Price
$30.00 - $40.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Valves
Model Number:
DSG
Brand Name:
LCH
Place of Origin:
Taiwan
DSG:
terminal box type

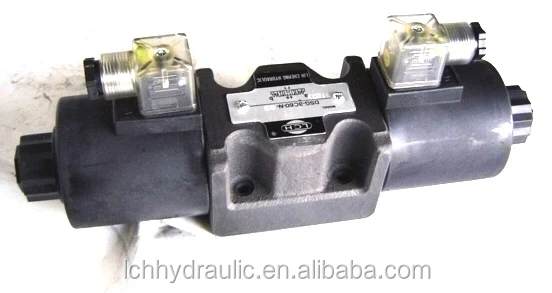

DSG-N:
DIN connector with lamp
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton type
Port
Taichung
Lead Time :
3 working days

reducing solenoid valve taiwanese solenoid valve cetop

alibaba china online shopping dsg02 24v solenoid directional control valve types

alibaba china online shopping valve types

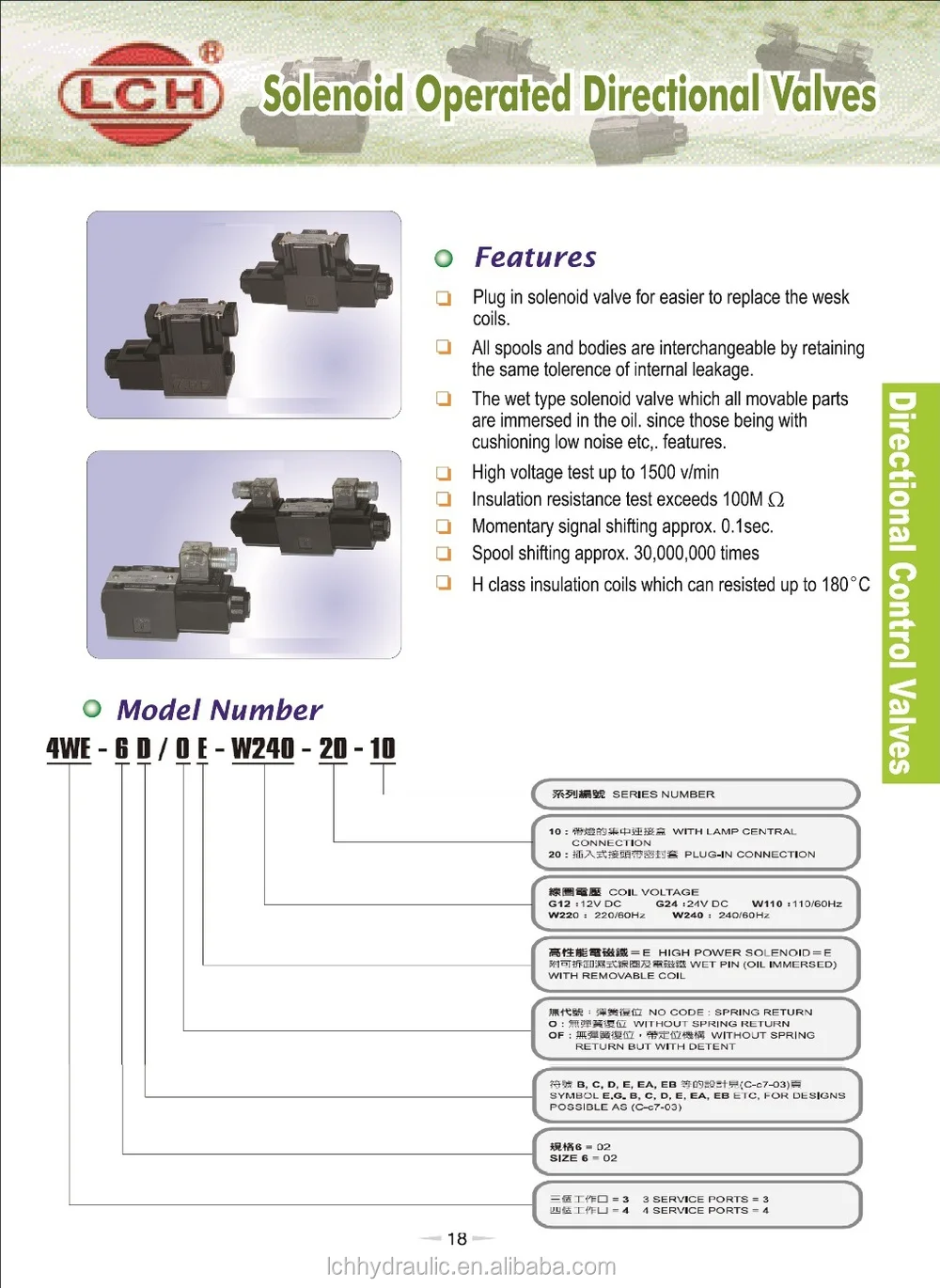

Features:

Solenoid Operated Directional Valve is a plug in type solenoid valve for easier to replace the weak coils.

All spools and bodies are interchangeable by retaining the same tolerance of internal leakage.

The wet type of solenoid valve, which is movable parts are immersed in the oil. It brings the feature of low noise.

It brings the feature of high voltage test up to 1500v/min.

Insulation resistance test exceeds 100MΩ

The momentary signal shifting takes approx. 0.1 sec.

Spool shifting approx. 30,000,000 times

H class insulation coils which can resisted up to 180°C





DSG-01 Series



These valves are adapted with strong wet-type solenoid and circuit designs to accomplish high pressure, large volume flow and lower pressure drop.



The optimum valve for any system can be utilized since many spool types and various solenoids are all available, along with other optional function.



DSG-03 Series



These valves are adapted with strong wet-type solenoid and circuit designs to accomplish high pressure, large volume flow and lower pressure drop.



The optimum valve for any system can be utilized since many spool types and various solenoids are all available, along with other optional function.



The pressure drop caused by the passing of pressurized oil is reduced toapprox.1/2 of the conventional Yuken model.

Good Light Weight design has accomplished to reduce body weight.



Catalogs:

Related Products:







Other similar solenoid valve type



Model Number:



DSG

3C2

N

02

A1

Series Number

Spool Type

Electrical Conduit Connection

Port Size

Voltage Type

DSG: Solenoid operated directional valves, sub plate mounting.

2B: Single

3C: Double

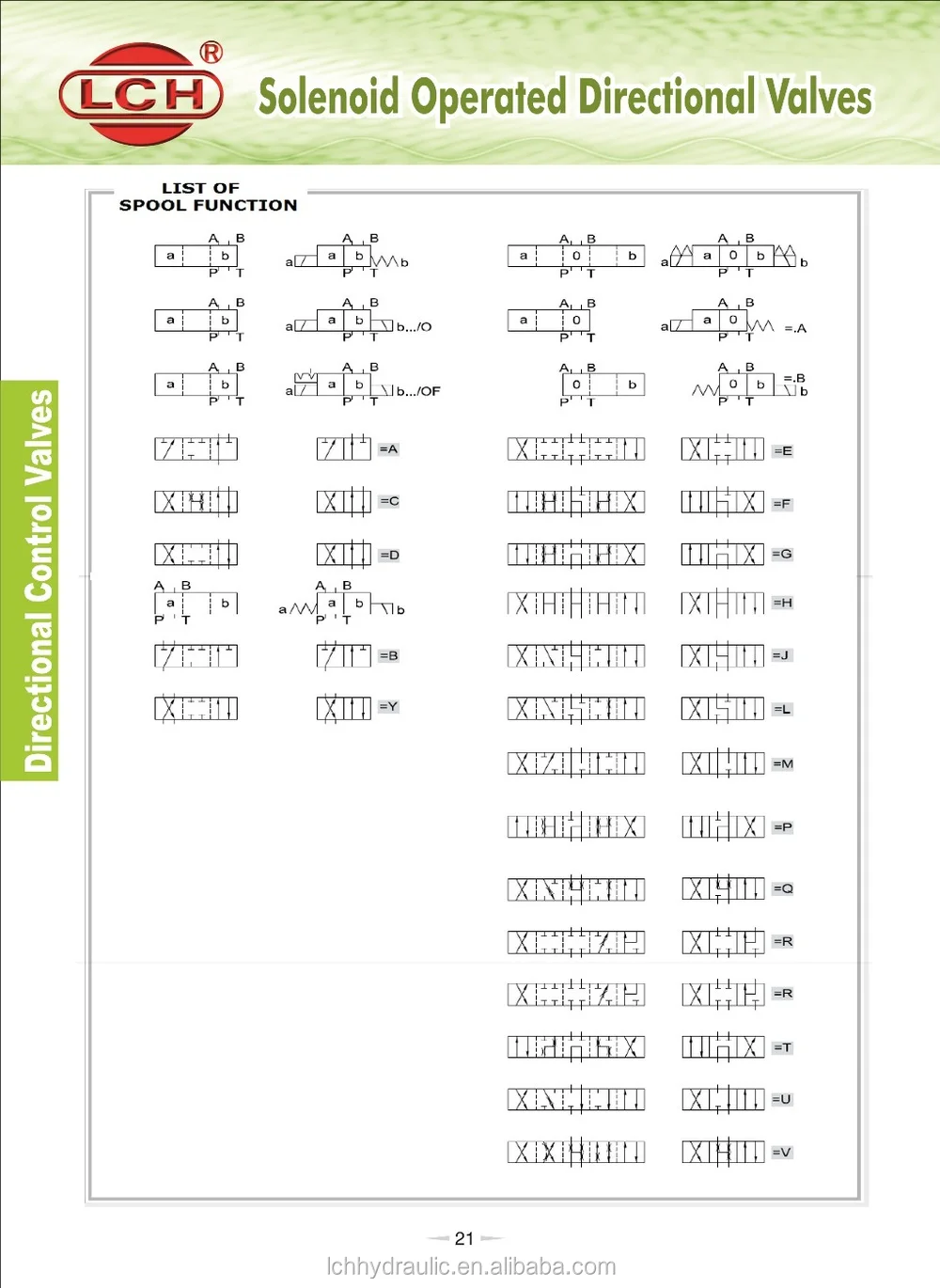

(For details refer to spool type)

N: DIN connector with lamp. DIN 4350. ISO 6952

None: Terminal box type with indicating lamp. DIN 43650. ISO 6952

02:1/4”

03:3/8”

A1: AC110V/60Hz

A2:AC220V/60Hz

A3:AC380V/50Hz

A4:AC110V/50Hz

A5:AC220V/50Hz

D1:DC12V

D2:DC24V
