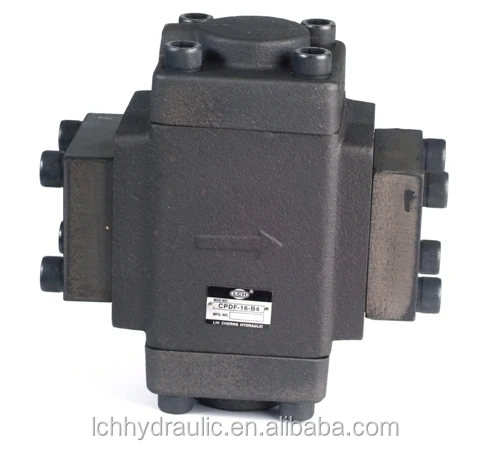

supplier fully hydraulic steering control unit pilot check valve cpdg

FOB Reference Price:Get Latest Price
$32.00 - $35.00 / Pieces | 1 Piece/Pieces supplier fully hydraulic steering control unit pilot check valve (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Valves
Model Number:
CPDT; CPDF
Brand Name:
LCH
Place of Origin:
Taiwan
CPDT:
thread type
CPDG:
gasket type

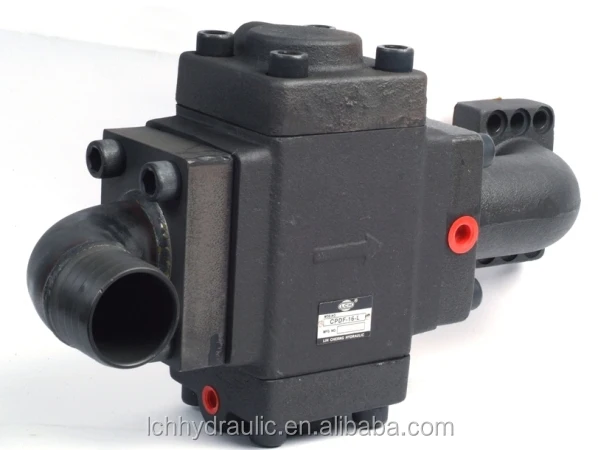

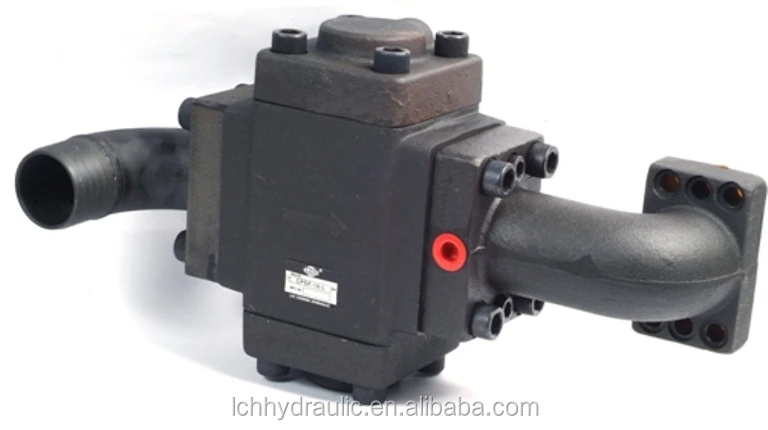

CPDF-L:
flange type
Product name:
supplier fully hydraulic steering control unit pilot check valve cpdg
Supply Ability
Supply Ability:
500 Piece/Pieces per Month supplier fully hydraulic steering control unit pilot check valve
Packaging & Delivery
Packaging Details
carton type
Port
Taichung
Lead Time :
3 working days

supplier fully hydraulic steering control unit pilot check valve cpdg

Features:

This pilot controlled check valve allows flow in one direction and prevents flow in the reverse direction unless cracking pressure is required to open the valve so then it allow the flow freely reverse. If the cracking pressure is closed, then the internal pressure in the system could be maintained.

Two-steps design of pilot controlled check valves has been interchanged which is able to operate via lower pressure so then it reduces the noisy occurred by impulse so the quality is more advanced.

These check valves allow free flow in one direction and prevent reverse flow in the reverse direction until operated by a pilot pressure to allow free reverse flow.
The specified cracking pressure is required to open the valve to allow free flow direction.



Specifications:



Model Number

Rated Flow l/min

Max. Operated Pressure  Kgf/cm2

Cracking Pressure

Kgf/cm2

Weight kg

Thread type

Gasket type

Flange type

CPDT

CPDG

CPDF

CPDF-L

CPDT-04

CPDG-03

-

50

250

A: 0.5

B: 5

3.9

4.3

-

-

CPDT-06

CPDG-06

-

125

6.5

7

-

-

CPDT-10

CPDG-10

CPDF-10

315

11

10.8

11

-

-

-

CPDF-16

500

-

-

29

-

-

-

CPDF-10L

315

-

-

-

17

-

-

CPDF-16L

500

-

-

-

36.7





Model Number:

CP

D

G

06

A

3

Series Number



Type of Mounting

Port Size

Cracking Pressure

Optional codes

Pilot Operated Check Valves

D: Two-Steps

None:

One Steps

T: Thread type

G: Gasket type

03:3/8”

06:3/4”

10:1-1/4”



A: 0.5kgf/cm2

B: 5kgf/cm2

3:External pilot, external drain

4:External pilot, internal drain









Company Information

Company History:



Product process:



Our Services

Why Choose Us:

  • 30+ years experiecne
  • D&B certificate
  • R&D team OEM/ODM service
  • Best beofre and after customer service
  • 24 hours online service
  • 100% Made in Taiwan



Order Process:

  1. inquiry from customers
  2. offer proforma quotation to customers
  3. recieve Proforma order from customer
  4. start production
  5. quality control after production completed
  6. packing
  7. shipping
  8. delivery to customers



Packaging & Shipping

Packing:

All goods are packed with plastic bag in carton material package.



Shipping:

1. For small quantity, shipment is prefered to shipping with express by TNT, FEDEX, DHL,OCS, EMS, or UPS to meet your deadline worldwide basis.

2. For regular mass production, shipment could be shipped either by sea or air. Pleaes inform us your requirements, so then we could offer available options for you to save budget.



FAQ

Q.How to request a manufacturing quote from LCH?

A.Give us a call or send us an E-mail (lch at lih-cherng.com.tw) with your purchase request.

Q.What are your quality control procedures?
A.LCH is equpped with high-tech, advaned cmputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason hy LCH is recognized as on the world class quality level.

Q.How are orders packed and shipped?
A. Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigatation).
Q. Could LCH offer OEM service?
A.Yes. LCH is able to offer OEM with customers' brand name and trademark onto the product.

Q.Do LCH products come with a warranty?
A.Yes.LCH offer 1-year product life guarantee without abusive usage on all purchases which begins with the bill of lading.

Product Applications

Hydraulic components such as hydraulic valve, solenoid valve, hydraulic directional valve, oil pump, hydraulic gear pump, gear pump, electric motor, electrical motor, ac motor, hydraulic cylinder, cylinder, hydraulic power pack, hydraulic power unit, hydraulic power station, sandwich check valve, flow control valve, hydraulic pump and chemical pump are able to used in injection molding machine, full automatic compacting press, die casting machine, hydraulic excavator, garbage truck,machine center, and rubber press machines.
